POWER CONTROL PANEL

Specification

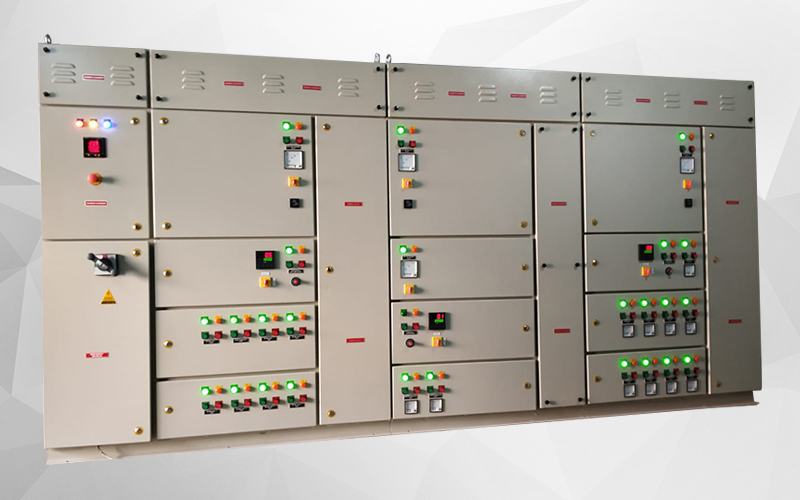

The MCC Panel (Motor control middle panel) is the focal region for controlling electric powered cars. Which has a motor starter, wire, or electrical switch and is forcibly separated. a unique instrument called a motor manipulate board is applied to manipulate motors in lots of ventures in severa commercial enterprise and industry packages different electric powered automobiles are required and it's far regular appealing to manipulate a portion of the vehicles.

• MCC Panel are with Fix / Draw Out type.
• MCC Panel with DOL, STAR-DELTA, RDOL, starters.
• MCC Panel are with various design like Single / Double Front, with DCS / Marshaling terminations.
• Facilities of different control voltage with control transformer control Bus
• With type-2 co-ordination wherever required.

Construction Details

• Modular / Non- compartmentalized construction.
• Panel structure with MS CRCA/SS.
• Indoor / Outdoor type Structure.
• Single front/double front Operated.
• Provision for Extensible for future use.
• Provision of Rubber Gaskets to meet IP requirement like IP-42/52/54/55/65.
• Arrangement for heat dissipation by means of Exhaust Fan or Lowers.

MCC Panel Pre Treatment And Painting

• Three Tank / Seven Tank Pre treatment process
• Final paint shade as per IS or client specifications
• Synthetic Enamel / Epoxy based primer / Powder coating as per customer’s requirement

MCC Panel Bus Bar Arrangement & Cable Alley

• Electrical Grade Aluminum / Copper Busbar
• Main busbar chamber at top / bottom of the Panel
• Separate chamber for vertical dropper
• Busbar System design on basis of continuous Current rating and Fault level with stand capacity
• Allowable temperature rise as per IS 8623 or as per specifications
• Busbar supports of SMC/DMC Material
• Top / Bottom cable entry. Detachable gland plate for cable entry

MCC Panel Assembly & Wiring

• Selection of components from Approved / Reputed vendor list as per Approved Drawing
• Design of Internal Layout fo optimum usage of space
• Internal wiring with 660/1100 v Grade PVC coated stranded Copper Flexible Wires
• Crimping Lugs are used for intrnal Connections / Terminations

MCC Panel Quality Assurance & Control Systems

• Inspection of Fabrication structure for dimension as per approved G.A. drawing
• Inspection of Painting / Powder coating
