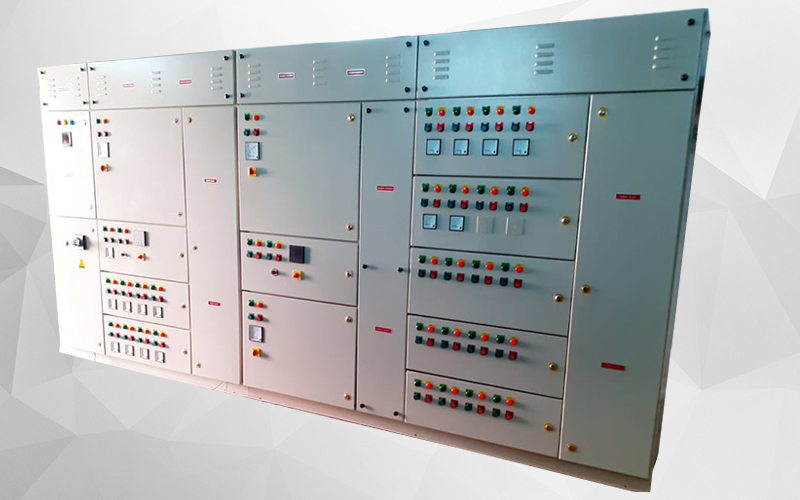

MCC PANEL

Specification

The MCC Panel (Motor control middle panel) is the focal region for controlling electric powered cars. Which has a motor starter, wire, or electrical switch and is forcibly separated. a unique instrument called a motor manipulate board is applied to manipulate motors in lots of ventures in severa commercial enterprise and industry packages different electric powered automobiles are required and it's far regular appealing to manipulate a portion of the vehicles.

• MCC Panel are with Fix / Draw Out type.
• MCC Panel with DOL, STAR-DELTA, RDOL, starters.
• MCC Panel are with various design like Single / Double Front, with DCS / Marshaling terminations.
• Facilities of different control voltage with control transformer control Bus
• With type-2 co-ordination wherever required.

Construction Details

• Modular / Non- compartmentalized construction.
• Panel structure with MS CRCA/SS.
• Indoor / Outdoor type Structure.
• Single front/double front Operated.
• Provision for Extensible for future use.
• Provision of Rubber Gaskets to meet IP requirement like IP-42/52/54/55/65.
• Arrangement for heat dissipation by means of Exhaust Fan or Lowers.
