APFC Panel

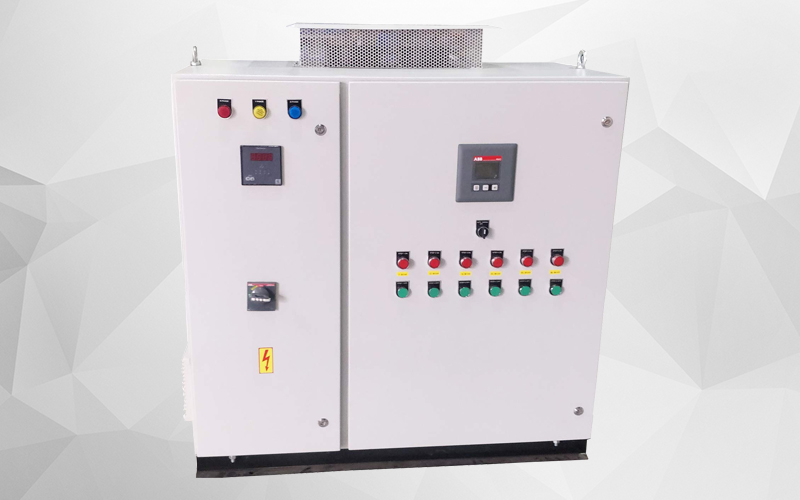

APFC manage Panel (automated power factor control panel) is used to improve the electricity thing, each time required, with the aid of switching ON and off the specified capacitor financial institution devices robotically. APFC Panel is supplied for controlling the power factor. The front of the absolutely compartmentalized feeder for controlling person capacitors, in which as rear aspect house Capacitors in a nicely ventilated panel region.

  • APFC with microprocessor based relays for controlling power factor to desired values.
  • RTPFC Panels using Thyrister based capacitor switching.

APFC Control Panel Construction Details

  • Modular / Non- compartmentalized construction.
  • Panel structure with MS CRCA/SS.
  • Indoor / Outdoor type Structure.
  • Single front/double front Operated.
  • Provision for Extensible for future use.
  • Provision of Rubber Gaskets to meet IP requirement like IP-42/52/54/55/65.
  • Arrangement for heat dissipation by means of Exhaust Fan or Lowers.

APFC Control Panel Pre Treatment And Painting

  • Three Tank / Seven Tank Pre treatment process
  • Final paint shade as per IS or client specifications
  • Synthetic Enamel / Epoxy based primer / Powder coating as per customer’s requirement

APFC Control Panel Bus Bar Arrangement & Cable Alley

  • Electrical Grade Aluminum / Copper Busbar
  • Main busbar chamber at top / bottom of the Panel
  • Separate chamber for vertical dropper
  • Busbar System design on basis of continuous Current rating and Fault level with stand capacity
  • Allowable temperature rise as per IS 8623 or as per specifications
  • Busbar supports of SMC/DMC Material
  • Top / Bottom cable entry. Detachable gland plate for cable entry

APFC Control Panel Assembly & Wiring

  • Selection of components from Approved / Reputed vendor list as per Approved Drawing
  • Design of Internal Layout fo optimum usage of space
  • Internal wiring with 660/1100 v Grade PVC coated stranded Copper Flexible Wires
  • Crimping Lugs are used for intrnal Connections / Terminations

APFC Control Panel Quality Assurance & Control Systems

  • Inspection of Fabrication structure for dimension as per approved G.A. drawing
  • Inspection of Painting / Powder coating
